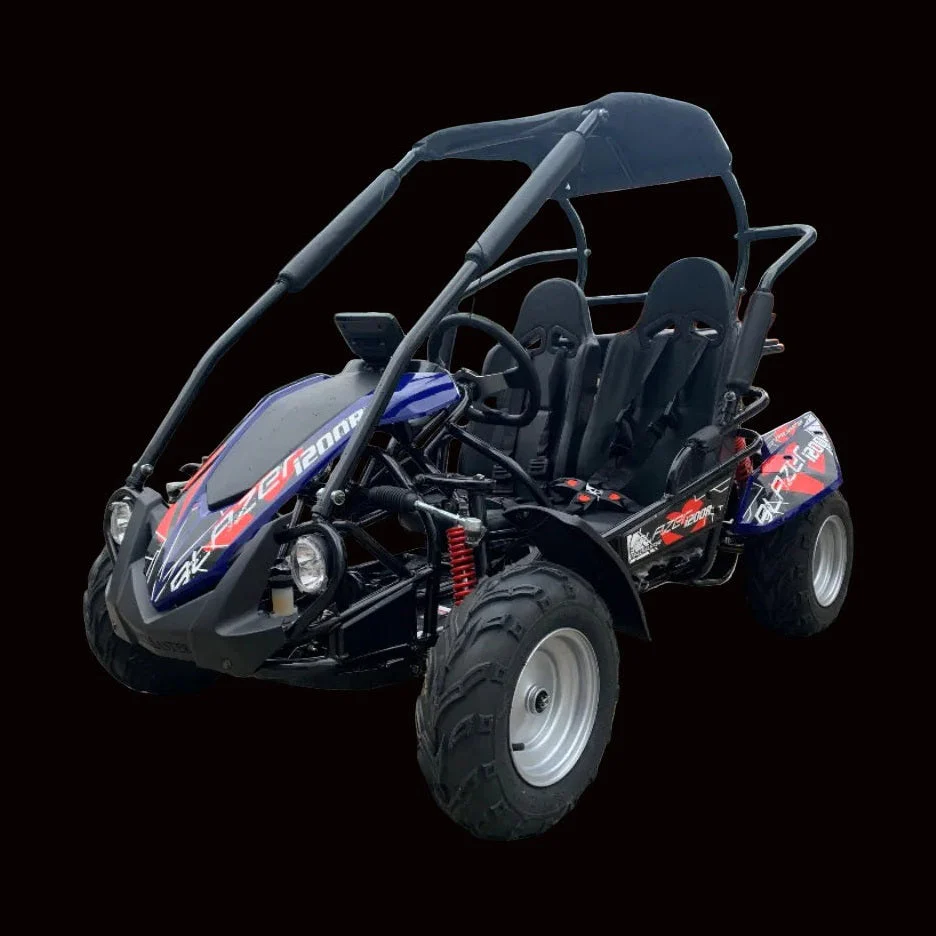

TrailMaster proudly introduces the Blazer i200R – the US's first Lithium battery mid-size go-kart! With a powerful 60V 1.8KW electric motor and a 48V 29Ah lithium battery, the Blazer i200R delivers an impressive output power of 1.4 Kw. This fully automatic go-kart, equipped with reverse, offers two forward driving modes: "D" mode with a top speed of 13M/h and "S" mode with a top speed of 27M/h. Plus, with a full charge, it can cover up to 36 miles, ensuring endless fun and excitement for riders of all ages!

Key Features:

Powered by 48V, 29Ah Lithium battery
Digital LED monitor
Fully automatic with reverse
Driver has to hit brake in order to engage throttle pedal for safety
Offers two driving mode: with “D” mode top speed only 15M/h; with “S” mode top
speed 27M/h
Strong low-end torque and able to climb 20 degrees slope
Canopy top
5-Point safety harness seatbelt
LED headlight
Horn
All-wheel fenders
Big tires: F / R: 16x6-8 / 16x7-8
Rack and pinion steering wheel
Hydraulic disc brake
Padding over roll cage
Individual sporting seats
Adjustable driver seat: pedal to seat back adjustable from 34” to 39”

Maintenance tips:
1. If putting kart to storage, should turn off battery switch located above right
rear axle close to the wheel.
2. Battery should be charged every two months if not in use.

SPECIFICATIONS

Battery Information
Battery:	Lithium
Battery Weight:	14 lbs
Nominal Voltage:	48V
Rated Capacity:	29Ah
Charging Temperature Range:	32 °F to 115 °F
Storage Temperature Range:	14 °F to 115 °F
Cycle Life:	Cycle to 60% at normal temperature, 100% DOD >= 600 times
Charging Time:	9h
Range:	36 miles max depending on weight, speed and driving conditions.
Battery Warranty:	2 Year Limited warranty
Electric Motor Information
Service Voltage:	60V
Rated Power:	1.8KW
Output Power:	1.4KW
Rated Speed:	4350RPM
Rated Current:	33A
Rated Torque:	4Nm
Max Torque:	87Nm/450A
Current limit:	75A
General Information
Suspension F/R:	Double A-arm / Double Oil Damped Shock
Brakes, F/R:	Rear Hydraulic brake, Disc
Tires F/R:	16x6-8 / 16x7-8
Gross Weight:	435 lbs
Net Weight:	352 lbs
Max Load:	440 lbs
Driving Mode:	R-N-D-S
Max speed:	15mph on “D” mode; 27 mph on “S” mode
Climbing ability:	20 degrees
Dimension Information
Wheelbase:	48.4 inches
Height to Seat:	10.2 inches
Min Ground Clearance:	2.8 inches
Pedal to seat back distance:	34-39 inches
OA L x W x H:	67x44x51.2 inches
Crate size:	70X44X26 inches

Configurations And Specifications Subject To Change Without Notice. “BV
POWERSPORTS, LLC”
